Getting Started with Intel® Galileo and Arduino IDE

This document explains how to connect your Intel® Galileo to the computer and upload your first sketch.

(:*toc :)

1 | Get an Intel® Galileo, a USB cable, and a 12V Power Supply

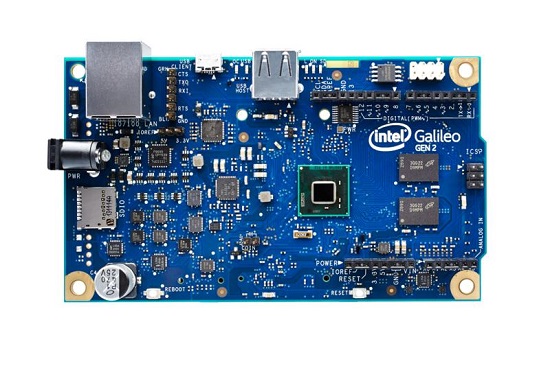

Figure 1– Intel® Galileo Gen2 Board

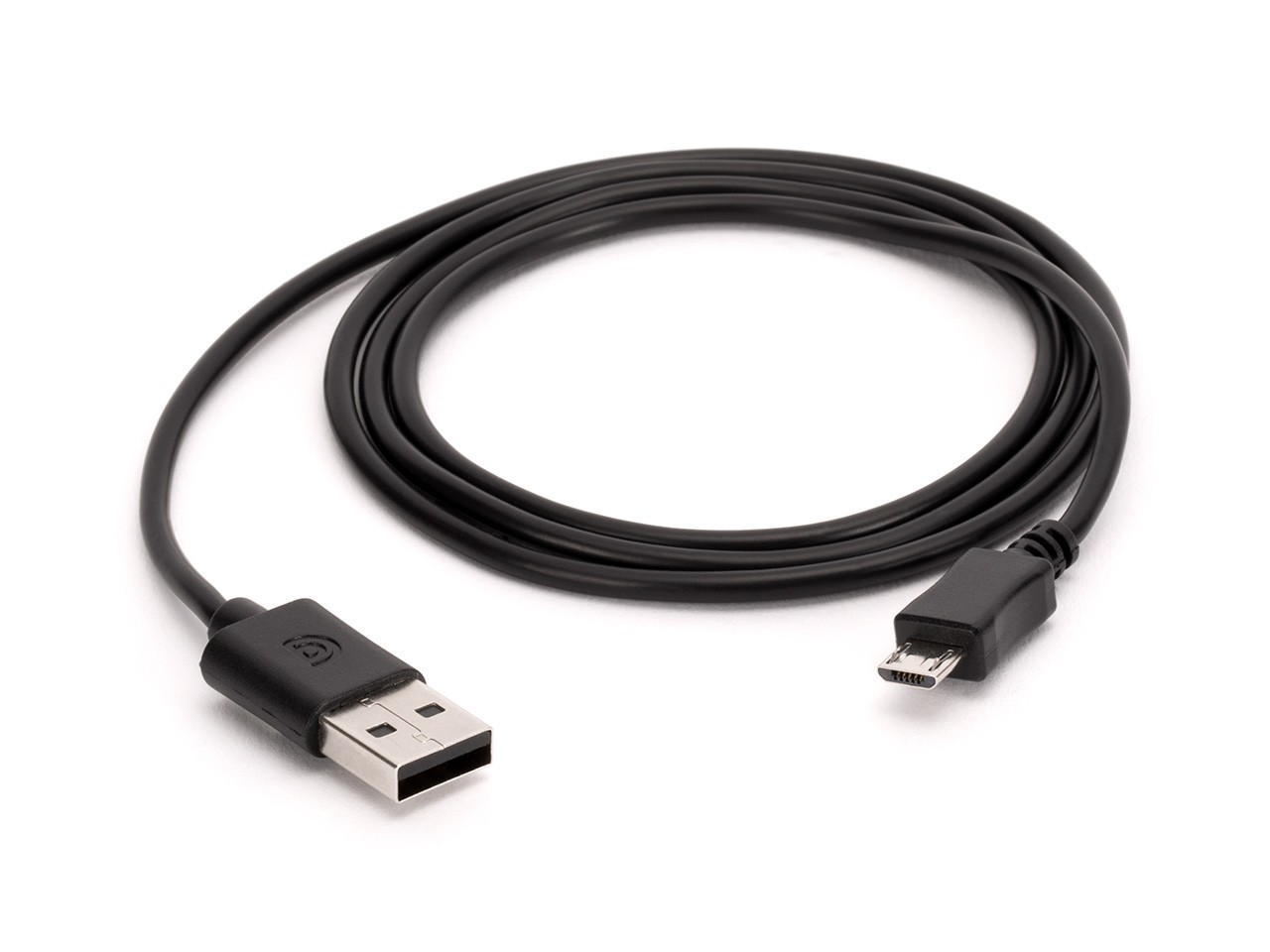

Figure 2- You’ll need one of these USB cables.

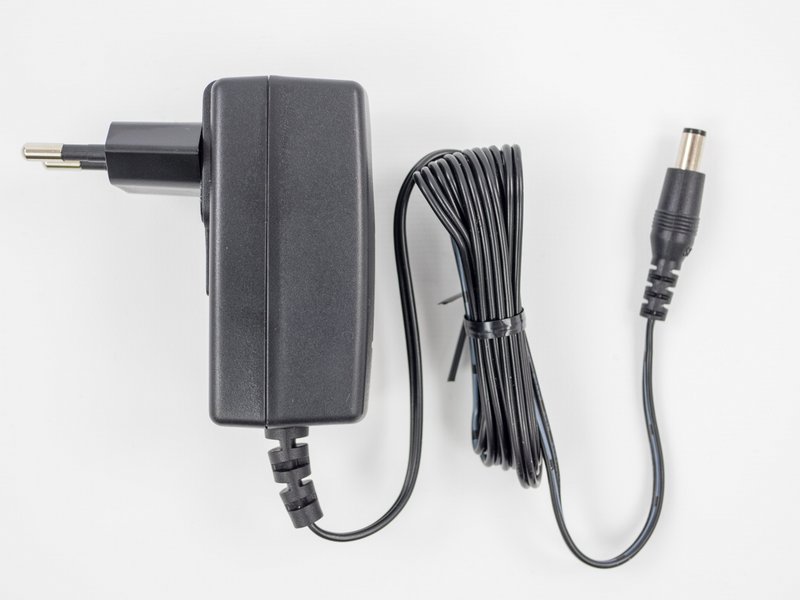

Figure 3- You’ll also need one of these power cables.

2 | Connect the board

To upload Arduino sketches the Intel® Galileo board must be powered up and connected to your computer.

Plug in the DC power supply into an outlet and into DC barrel jack on your Intel® Galileo board. You should see the green power LED light up near the USB port on the board. NOTE: If you are using the DC power supply included with the Intel® Galileo make sure you fit the apropriate plug.

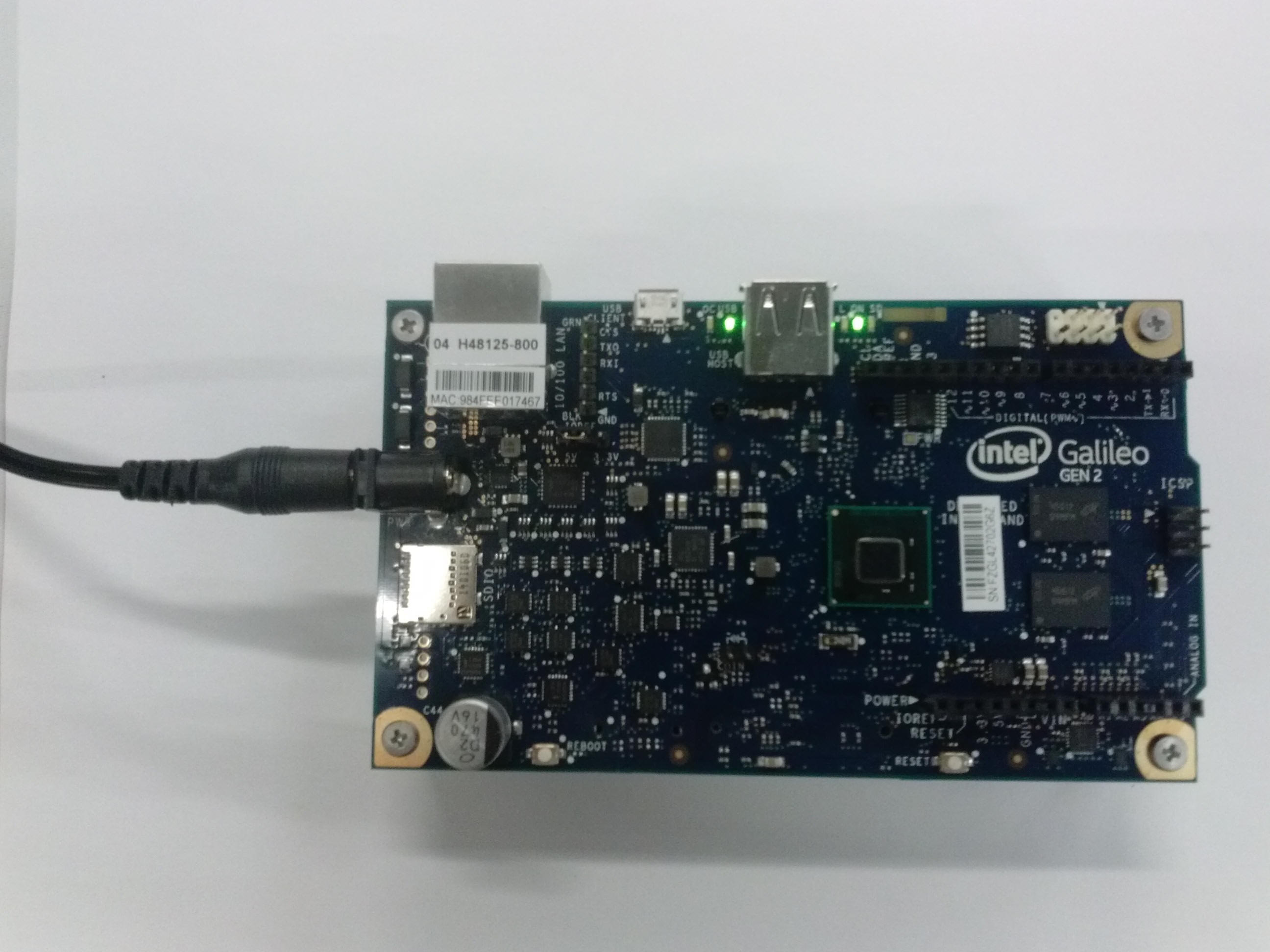

Figure 4- Intel® Galileo board with DC power plugged in and power LED lit

Plug the micro-USB cables to the micro USB connector on the board.

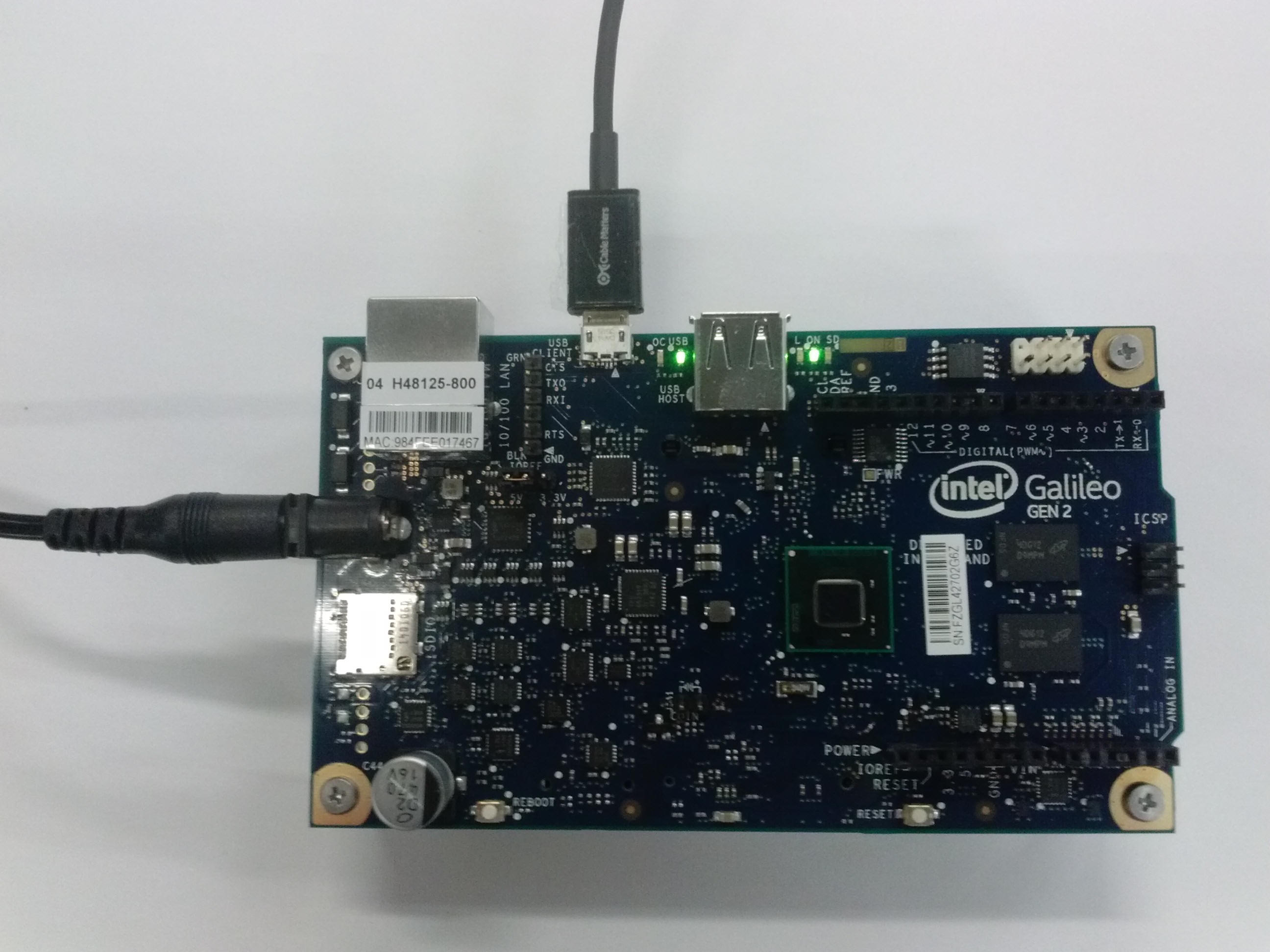

Figure 5- Plug in USB cable into the micro USB port

Plug in other end of the usb cable to your computer.

Figure 6- Plug the other end of the USB cable into your computer USB port

Wait a moment for the board to boot up. If you are plugging in your board for the first time and using Windows your computer will begin a driver install process. Allow this to complete before contining on.

3 | Open the blink example

Open the LED blink example sketch: File >> Arduino Examples >> 1.Basics >> Blink. You should see a window similar to the one below.

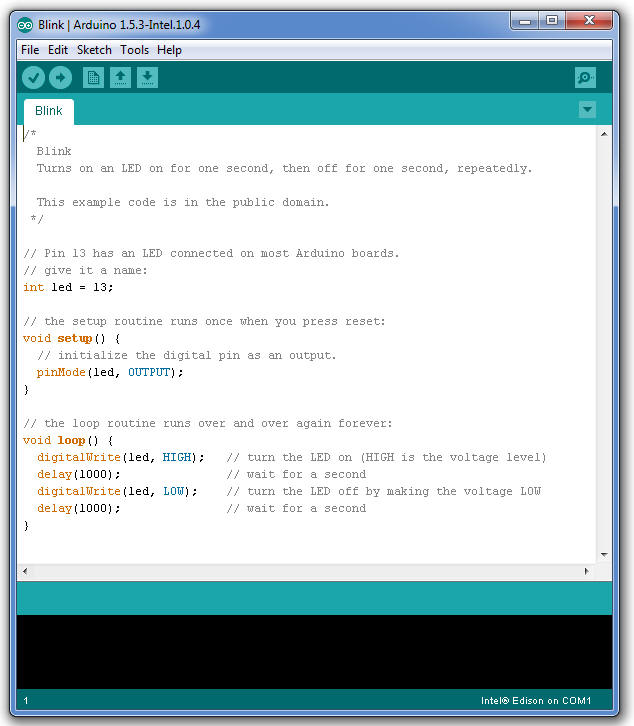

Figure 7- Blink example loaded into Arduino IDE

4 | Select your board

You'll need to select the Intel® Galileo in the Tools >> Board menu.

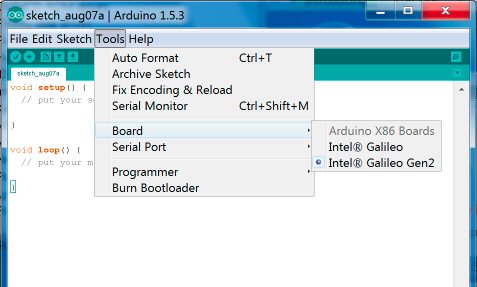

Figure 8- Select Intel® Galileo Gen2 from the Tools >> Board menu

5 | Select your serial port

Select the serial device of the board from the Tools | Serial Port menu. The easiest way to find what port the board is using is by disconnecting your board, restarting the IDE, and re-opening the menu; the entry that disappears should be the Intel® Galileo board. Reconnect the board, restart the IDE, and select that serial port.

On Windows*

The port is likely to be COM3 or higher in the Device Manager, like in Figure 9. COM1 and COM2 are usually reserved for hardware serial ports.

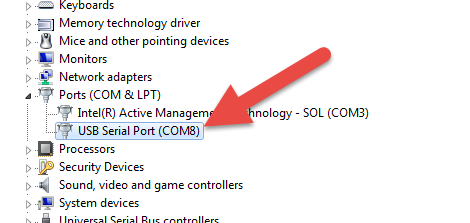

Figure 9- Select Intel Galileo Com Port (COM#)

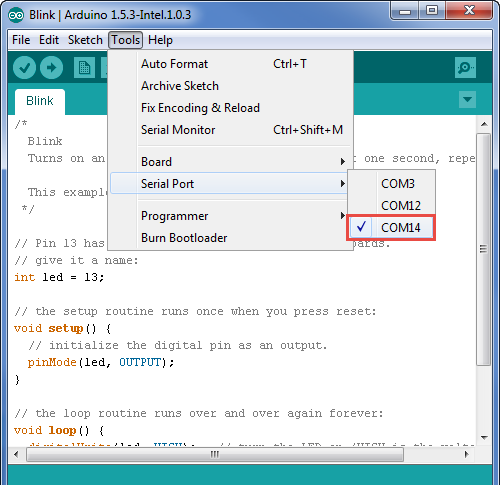

Figure 10- Select COM port from Tools >Serial Port menu is using Windows*

Now the bottom right should match the COM port number of the 'Intel Galileo Virtual Com Port (COM#)" from the Device Manager, like in Figure 11.

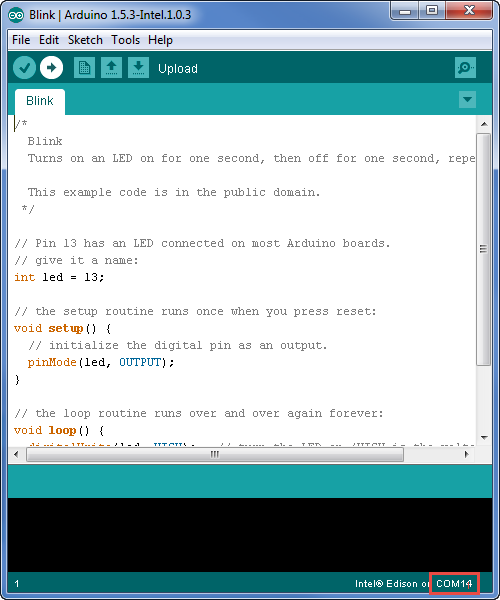

Figure 11- The COM number should match the Intel Galileo Virtual Com Port (COM#).

On Linux*

The port is likely to be /devlab/ttyACM0.

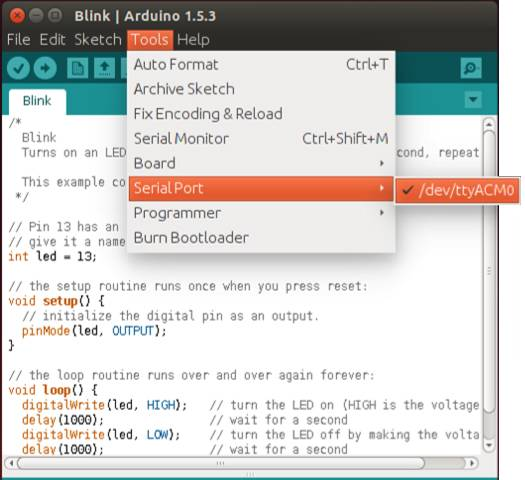

Figure 12- Select /devlab/ttyAMC0 from the Tools >Serial Port menu is using Linux*

On Mac OS X*

The port is likely to be /devlab/cu.usbmodemxxxx.

Figure 13- Select /devlab/cu.usbmodemxxxx from the Tools >Serial Port menu is using OS X*

6 | Upload and Run the Program

Click the Upload button in the upper left to load and run the sketch on your board.

Figure 14- Click the Upload button to upload and launch your sketch

You should see a "Done Uploading" and a "Transfer complete" when it has uploaded, like in Figure 15.

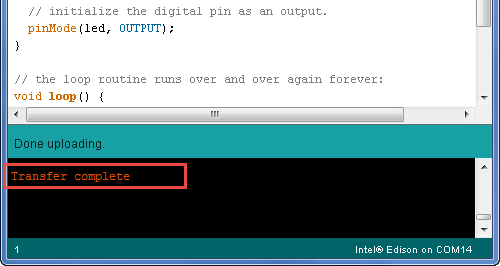

Figure 15- You should see "Transfer complete"

The DS2 LED on your board should now blink with a 1 second delay.
